SATA Connector END

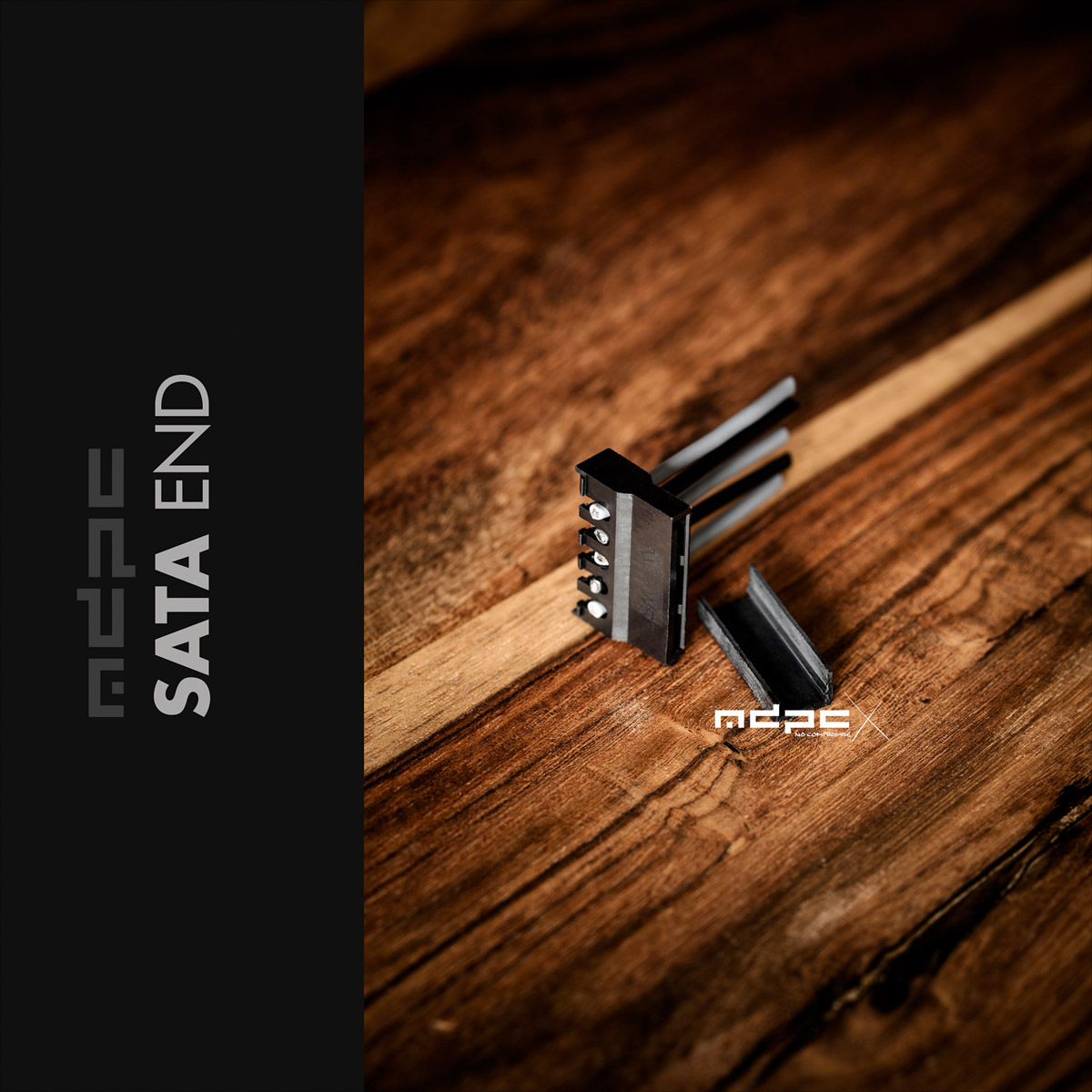

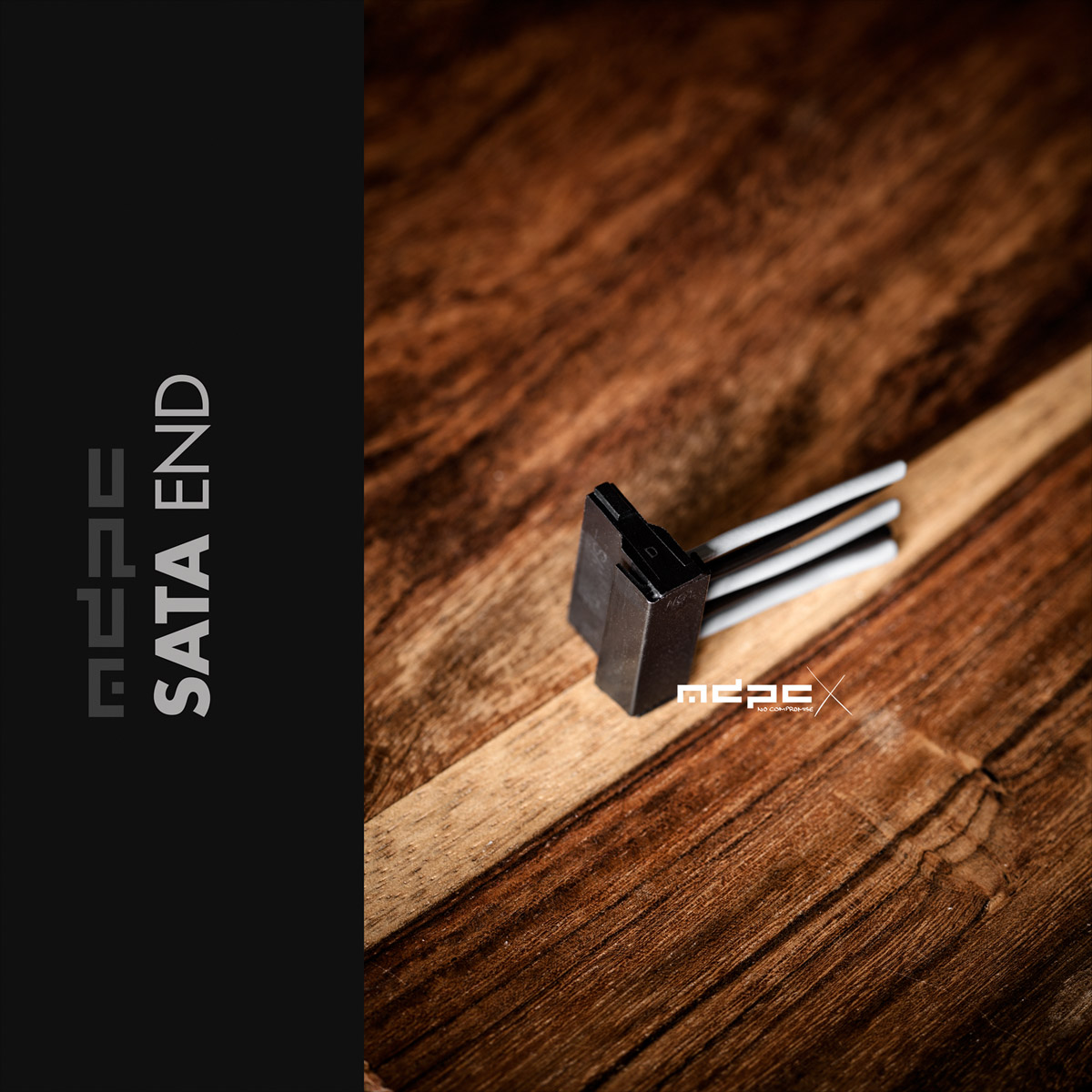

This is an extremely compact SATA END push-in connector, which has a depth of only 16mm including the cap. The cap of the END connector covers the open ends of the wires.

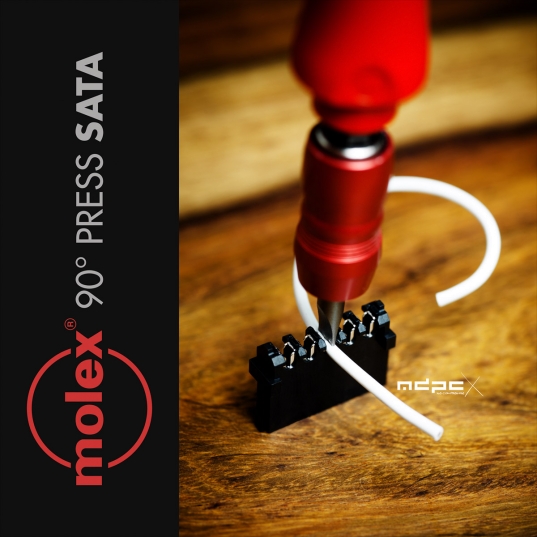

The wires (18 AWG, 0.75 mm², 17 AWG 1.00 mm²) are simply pressed down completely into the "blades" of the connector with a flat screwdriver or similar wide object, while you hold the connector stable on a surface. The "blades" of the connector cut through the wire-insulation and make contact to the wire core. You can see the procedure on the third photo in the product gallery.
